Import Your LumenPnP V4.2 Configuration

OpenPnP needs configuration files specific to your LumenPnP before it can communicate with the machine.

This guide will walk you through replacing the default OpenPnP settings with the correct LumenPnP V4.2 configuration.

1. Download the Configuration Files

LumenPnP V4.2 Configuration

Download the configuration package for your machine.

↓ Download V4.2 Configuration Files

After downloading, extract the ZIP file. You should find these two files:

  • machine.xml
  • vision-settings.xml

These files contain the machine and vision settings required for your LumenPnP.

2. Close OpenPnP and Back Up Your Settings

Close OpenPnP Before Continuing

OpenPnP must be completely closed before replacing its configuration files. Otherwise, your changes could be overwritten or result in an inconsistent configuration.

If you have previously configured OpenPnP, back up your existing .openpnp2 folder before continuing. This preserves your current machine settings, feeders, and other customizations.

3. Locate Your Configuration Folder

OpenPnP stores its configuration files in a hidden folder named .openpnp2.

  1. Open your Home folder.
  2. Press Ctrl + H to show hidden files.

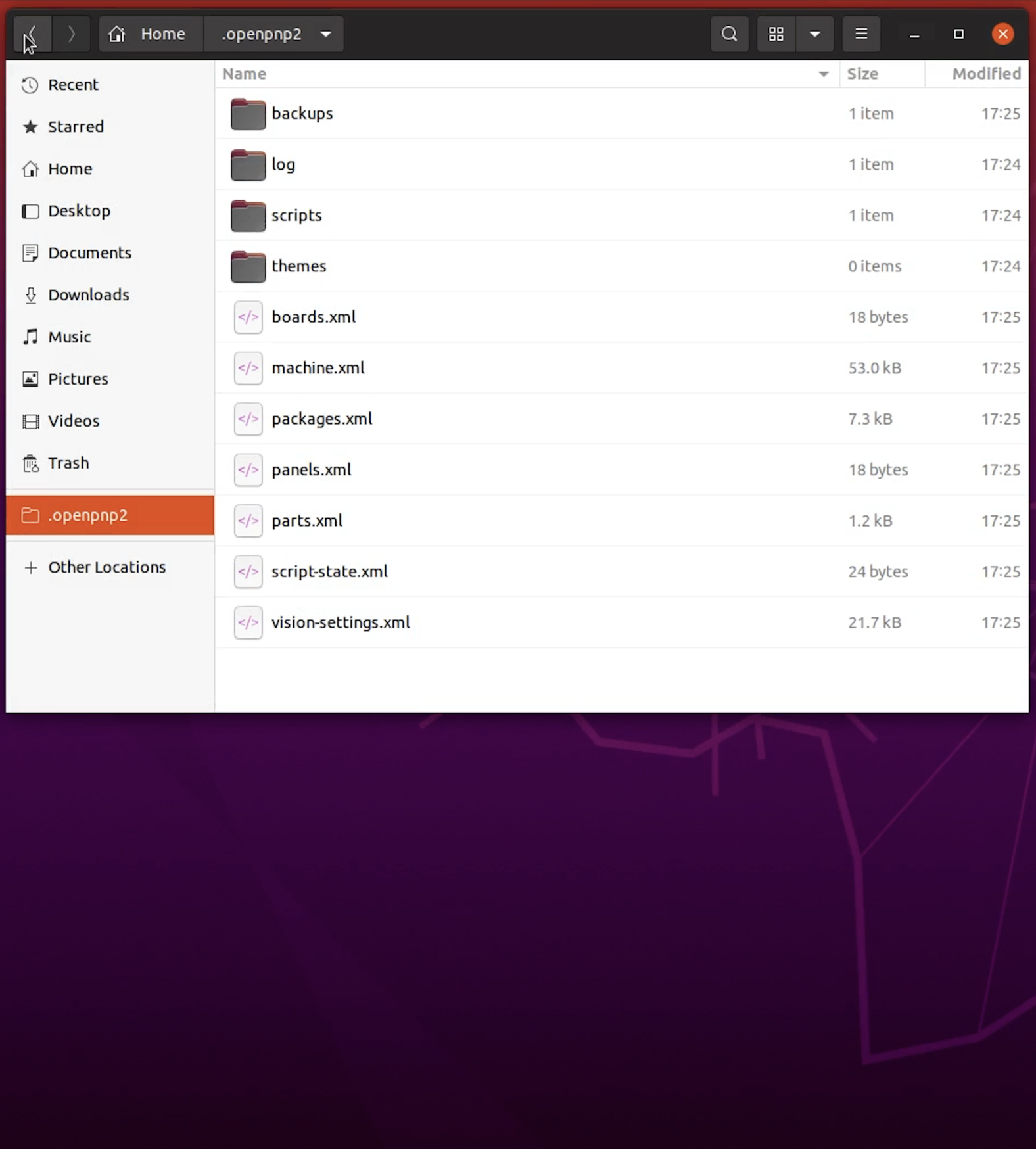

  3. Locate and open the .openpnp2 folder.

Your configuration folder is located at:

~/.openpnp2

OpenPnP configuration folder

  1. Open File Explorer.
  2. Enable Hidden items under the View menu.
  3. Navigate to your user folder.
  4. Open the .openpnp2 folder.

Your configuration folder is located at:

C:\Users\<your username>\.openpnp2

Can't find the .openpnp2 folder?

Launch OpenPnP once, allow it to load, and then close it completely. This initializes the default configuration folder.

4. Replace the Configuration Files

With OpenPnP closed, and the .openpnp2 folder open:

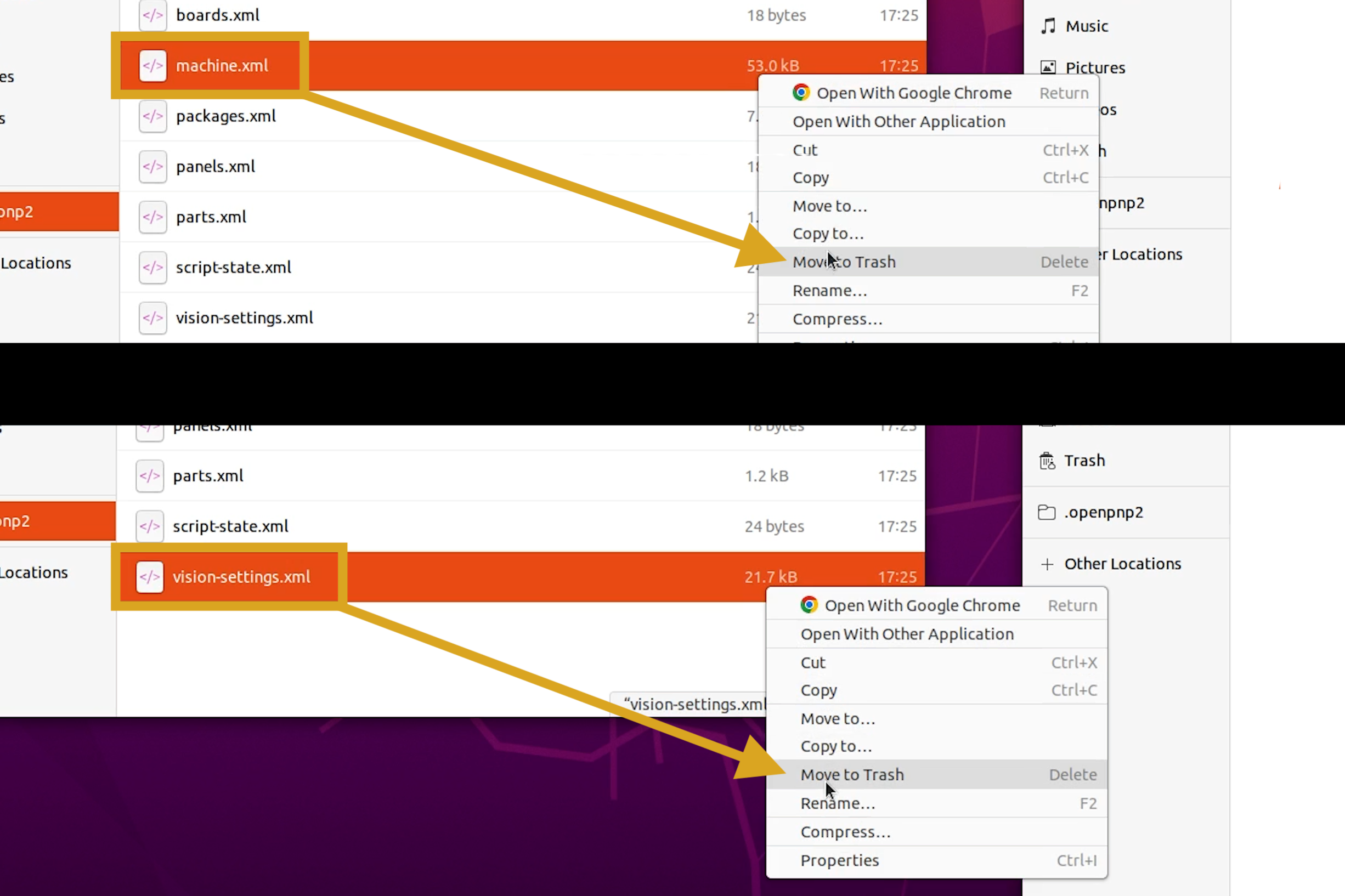

  1. in the .openpnp2 folder, delete the stock machine.XML and vision-settings.XML Copy configuration files into the OpenPnP folder
  2. Open the ZIP folder you extracted earlier.

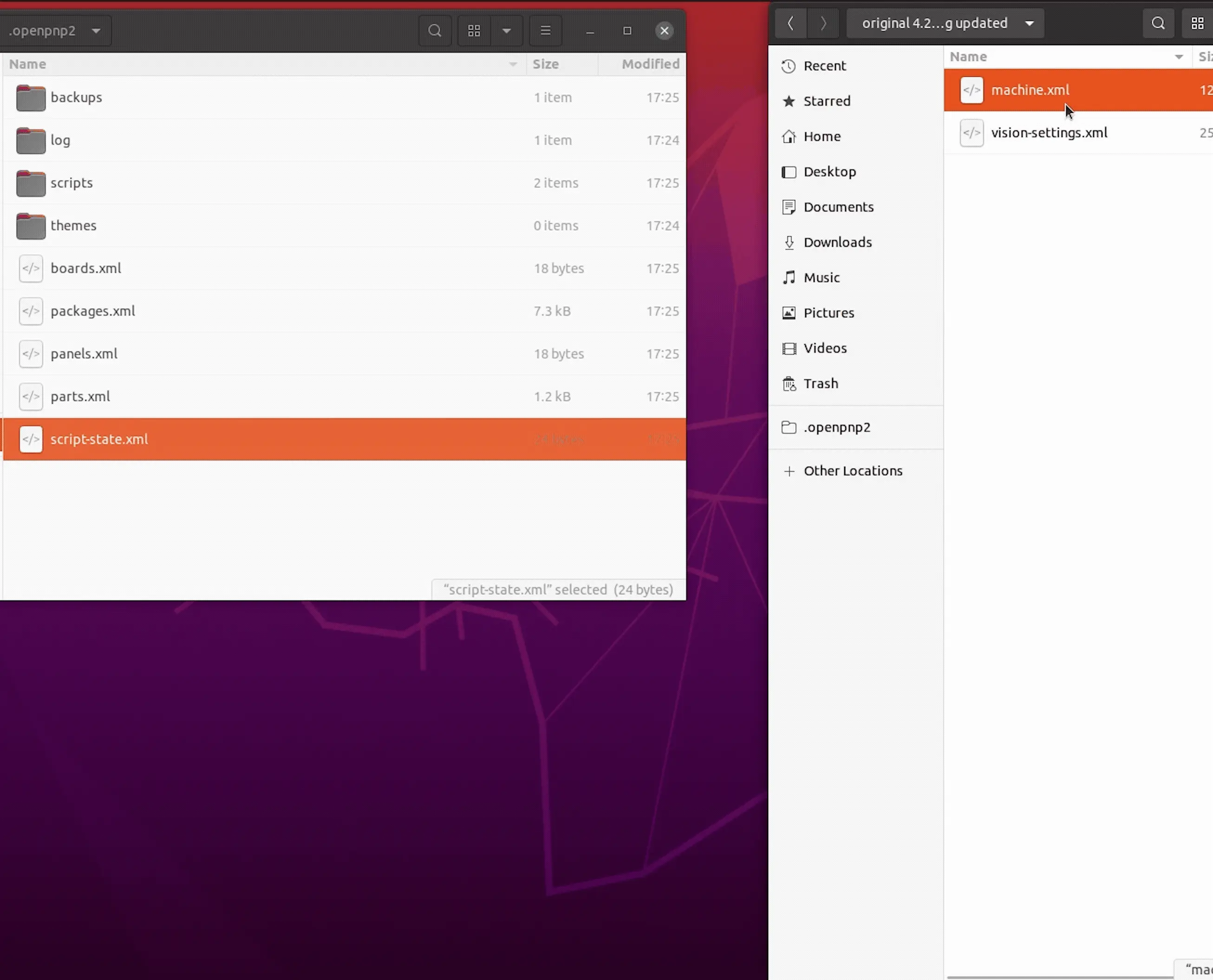

  3. Copy machine.xml and vision-settings.xml.
  4. Paste both files into your .openpnp2 folder. Copy configuration files into the OpenPnP folder
  5. If it prompts you to replace the existing files, that means the original files didn't get deleted, but that is fine. Click the button to replace the two files with the new configuration files we supplied. Then, confirm the two copied configuration files in .openpnp2 folder match the file size of the ones you downloaded from us.

Copy configuration files into the OpenPnP folder

Only Replace These Two Files

You only need to replace machine.xml and vision-settings.xml. Leave the other files in .openpnp2 unchanged.

What do these files do?

  • machine.xml contains your LumenPnP's machine, motion, camera, and hardware configuration.
  • vision-settings.xml contains the vision settings used during calibration and operation.

These files provide the starting configuration for your LumenPnP V4.2.

5. Verify the Configuration

  1. Launch OpenPnP and allow it to load completely.
  2. Open Machine Setup and check that the expected LumenPnP machine configuration is present.

Configuration Imported

If OpenPnP loads your machine configuration without errors, you're ready to continue. Camera and machine connections will be configured in the next steps.

Next: Connect Your LumenPnP

Ready to Connect Your Machine?

Your LumenPnP V4.2 configuration files are installed. Next, you'll establish communication between OpenPnP and your LumenPnP.

Connect Your LumenPnP →
