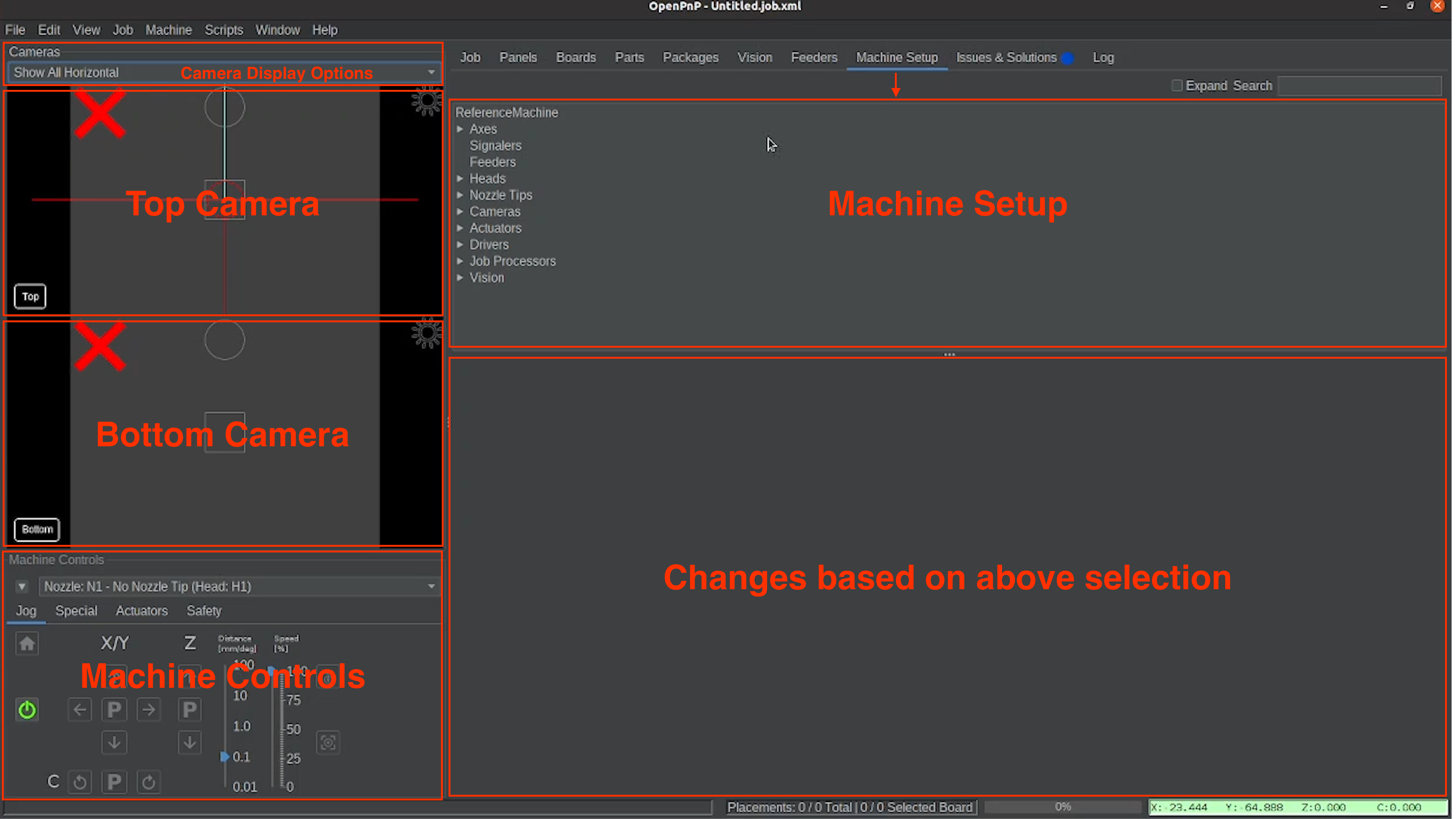

OpenPnP Overview
Get to know the OpenPnP Interface

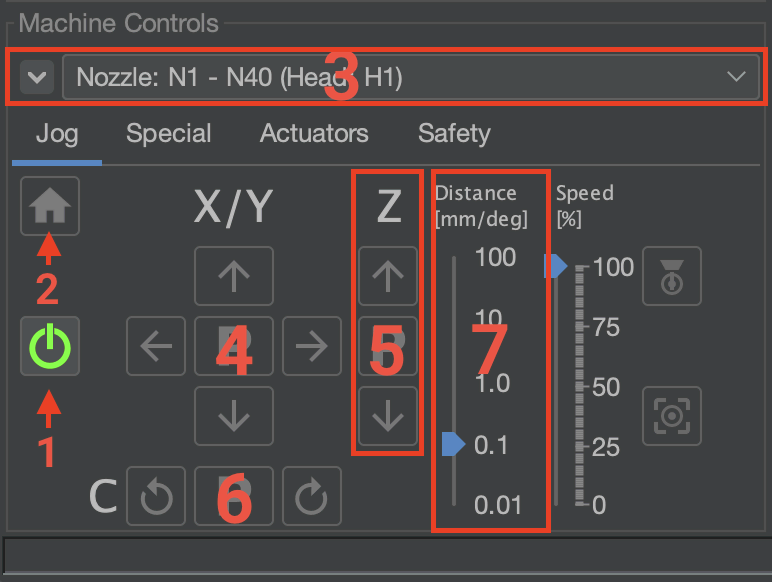

Machine Controls Overview
Located in the bottom left of OpenPnP
Breakdown of each Machine Control tab and what they do:
Jog Tab (Default)
- Power Button
- Home Button (turns yellow when powered on)
- Nozzle dropdown Selection (Change between Nozzle N1 and N2)
- X/Y Jog Controls (jog the machine head in the x and y axis)
- Z Jog Controls (jog the machine head vertically up and down)
- C Jog Controls (Rotates the selected nozzle. Distance converts to degrees of rotation when using these controls)
- Jog Distance Slider (Allows for adjusting the jogging distance.)
Special Tab
- Recycle picked part
- Discard picked part
Actuators Tab
- Manually turn LEDs on and off
- Manually turn on and read vacuum pumps

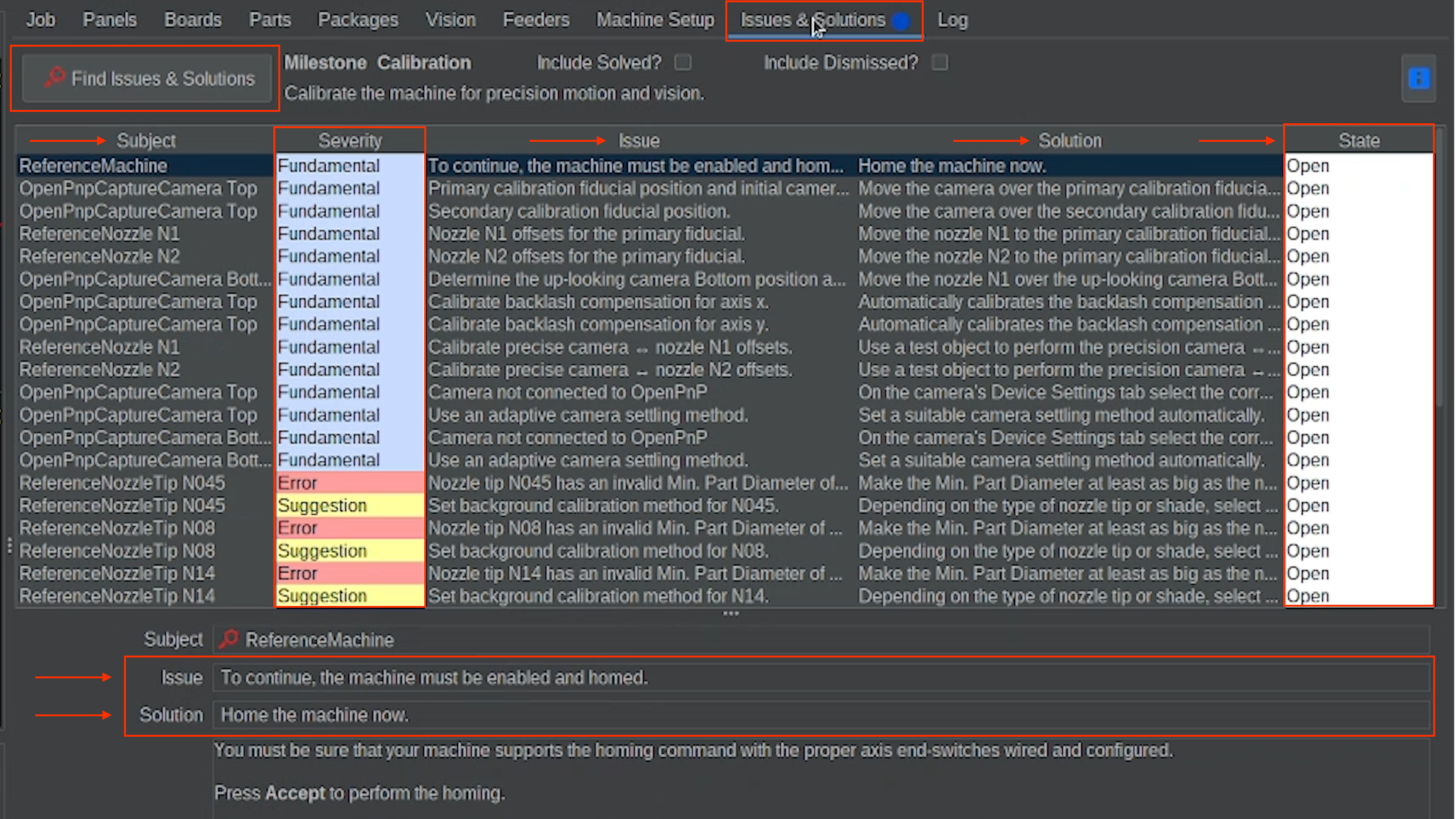

Issues and Solutions Overview
The Issues and Solutions tab can be found towards the very top of OpenPnP
the Find Issues and Solutions button is how to refresh the steps and find out what needs done next.
The Severity column has 3 types:
- Fundamental (These are usually very good to do)
- Suggestion (Suggested options, but not necessary. some QoL enhancements could be found. But be warned.)
- Error (This would suggest that something is wrong and need fixed. When going through calibration, ignore any that show up until you're through calibration)
The State column has 3 types:
- Open (white - not done)
- Solved (green - Finished Step)
- Dismissed (Grey - Dismissed Steps)
Every calibration Step displays two things:
- Issue (What is needing fixed)
- Solution (What needs done to fix it)
Steps to Dismiss and Skip
Issues and Solutions 'Suggestion' Steps to dismiss:
If you see any of the following steps, make sure to dismiss them right away.
Dynamic Safe Z for N1- Dismiss this step and refresh listDynamic Safe Z for N2- Dismiss this step and refresh listSet the low side soft limit and capture- Dismiss this step and refresh listSet the high side soft limit and capture- Dismiss this step and refresh list
Issues and Solutions 'Optional' Steps to skip during initial setup, as they are not needed:
You don't have to dismiss these. Just skip them when first going through calibration, as this should already be accounted for with one-sided positioning that negates the need for these steps.
Calibrate backlash compensation for axis x- Even though it says it is a fundamental step, skip it during calibration.Calibrate backlash compensation for axis y- Even though it says it is a fundamental step, skip it during calibration.
What Happens Next
In the next section, we will begin the calibration process using OpenPnP's Issues & Solutions.
Each step will guide you through adjusting cameras, nozzles, and machine settings until everything is properly aligned.
When calibration is complete:
- The machine properly homes
- Nozzles tips align consistently with camera crosshairs
- Repeat movements return to the same position
- Placement accuracy is visually consistent
Take your time. Each step builds on its last, and eventually needs less and less hand holding, so it is very important that the base fundamentals are carefully captured.
You've completed Preflight!
