Nozzle N1 offsets for the Secondary fiducial
Step 1 of 5
Step 1: Select the Nozzle N1 offsets for the secondary fiducial Calibration Task
For this task, we'll precisely align nozzle N1 with the secondary fiducial, similar to what we did with the primary fiducial in the previous step.
- After clicking Find Issues & Solutions in the previous step, locate and select the task for calibrating Nozzle N1 offsets for secondary fiducial.
Step 2 of 5
Step 2: Align N1 with the Secondary Fiducial
- In Machine Controls, Nozzle N1 - N08 (Head: H1) should already be selected from the dropdown below the camera feeds, as OpenPnP automatically selects the correct nozzle needed for the current task.

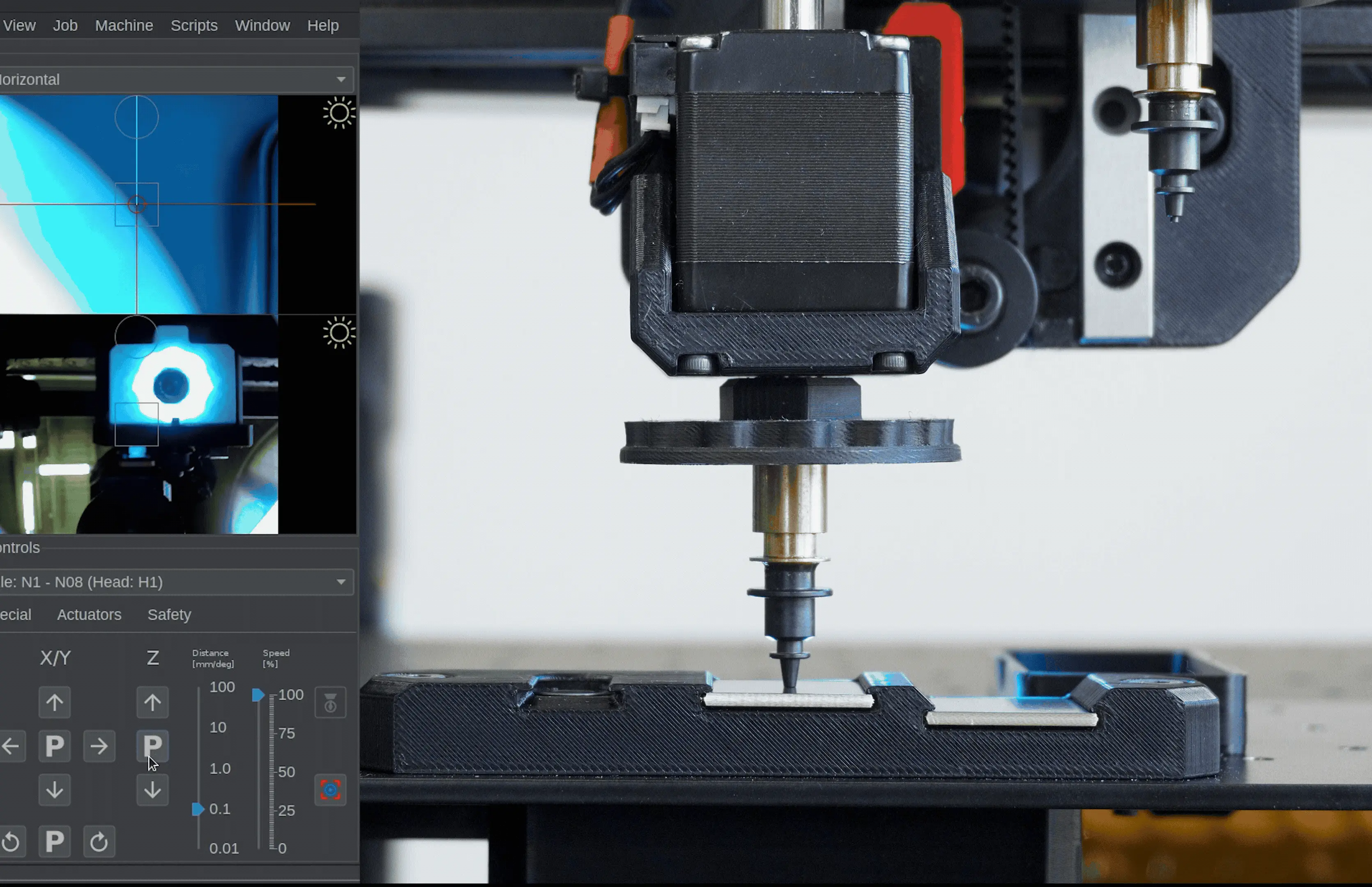

- Before moving the nozzle, press the P (Park) button between the Z-Axis Jog Controls to raise the nozzles to a safe height. Alternatively, use the Z-Axis Jog Controls to ensure both nozzles are clear of any potential collisions.
- When you get the nozzle tip roughly over the secondary fiducial, carefully lower the nozzle using the Z-Axis Jog Controls to better judge its position.

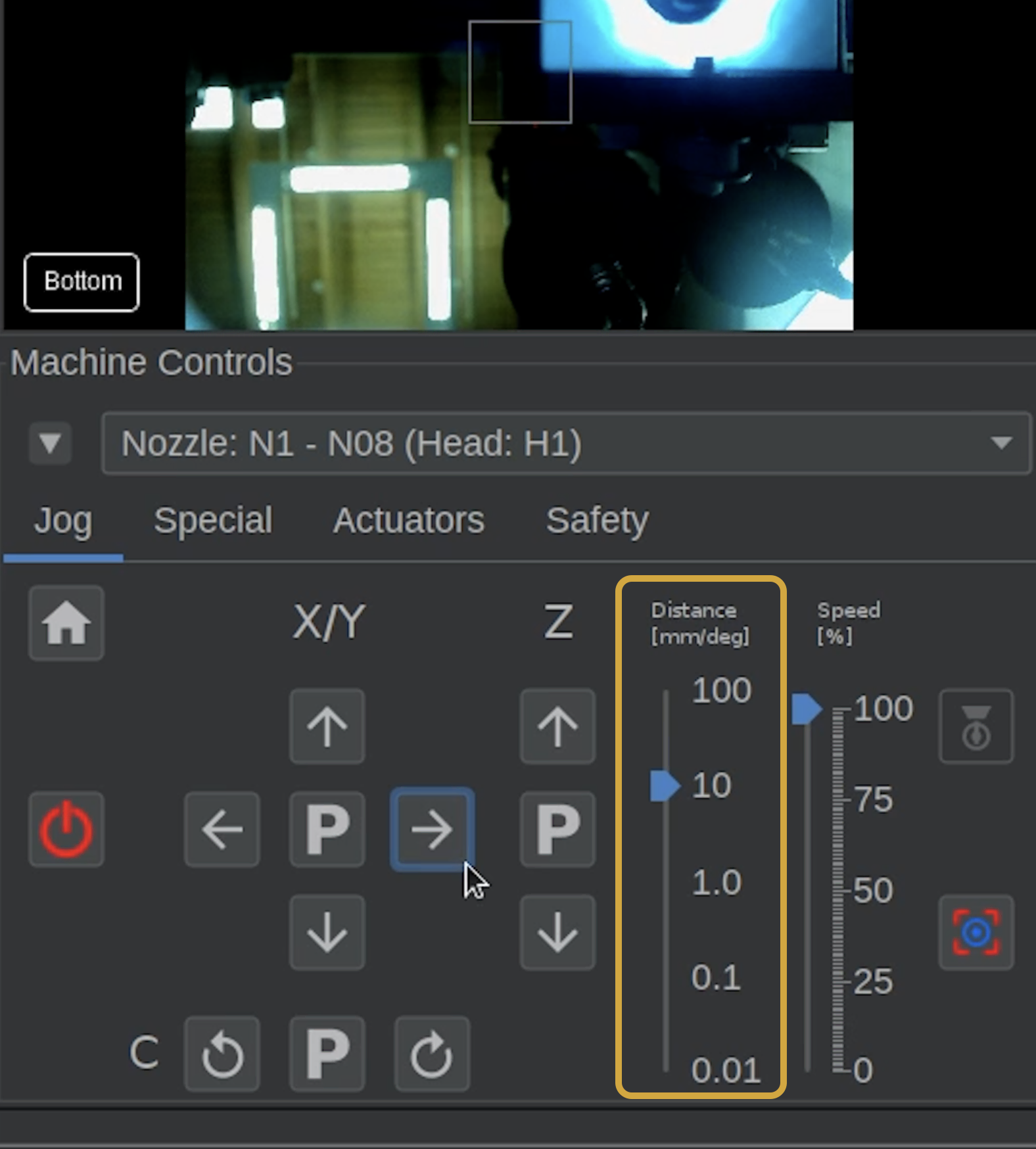

- Use the distance slider for smaller jog distances as you approach the fiducial for precise alignment.

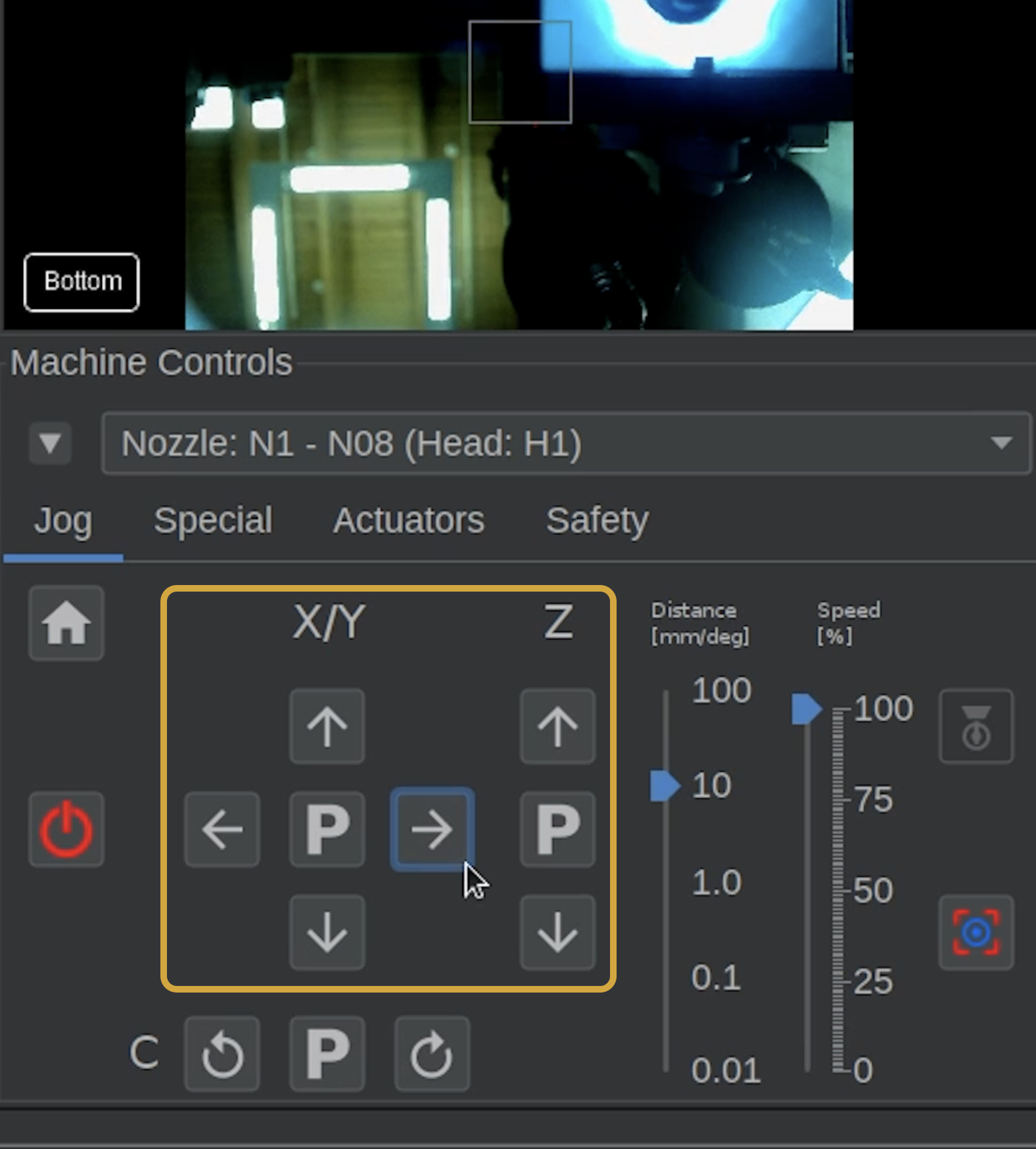

- Keep adjusting the jog controls for X, Y, and Z until the nozzle tip is centered on the secondary fiducial.
- Make sure to look at the nozzle tip's position on the secondary fiducial from multiple angles, like from the front and sides.
Take Your Time with Alignment
Check the nozzle tip's position from multiple angles to make sure it is centered on the secondary fiducial.
Step 3 of 5
Step 3: Save the Nozzle Position

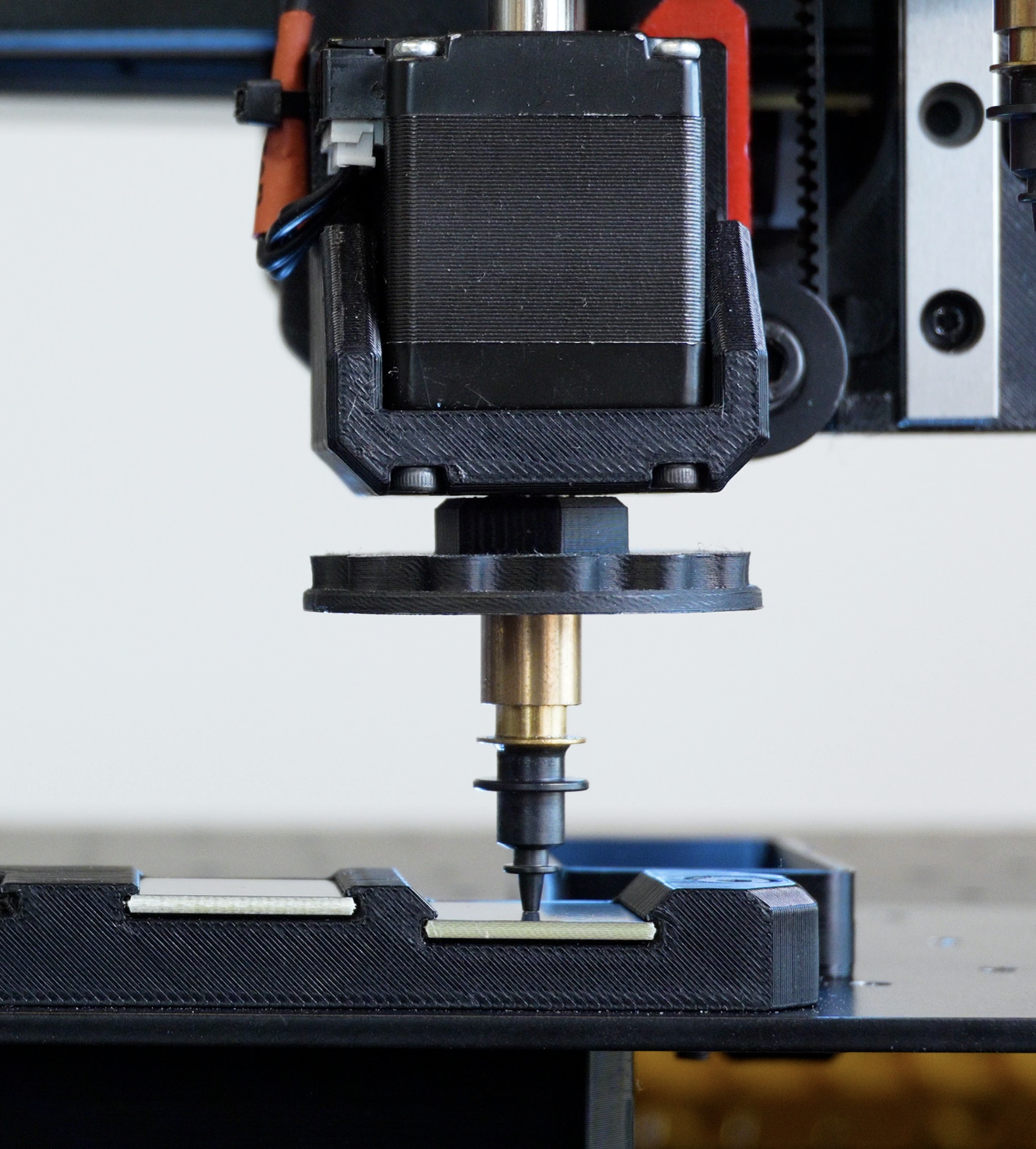

- Once N1 is precisely centered over, and touching, the secondary fiducial, return to the Issues & Solutions task.

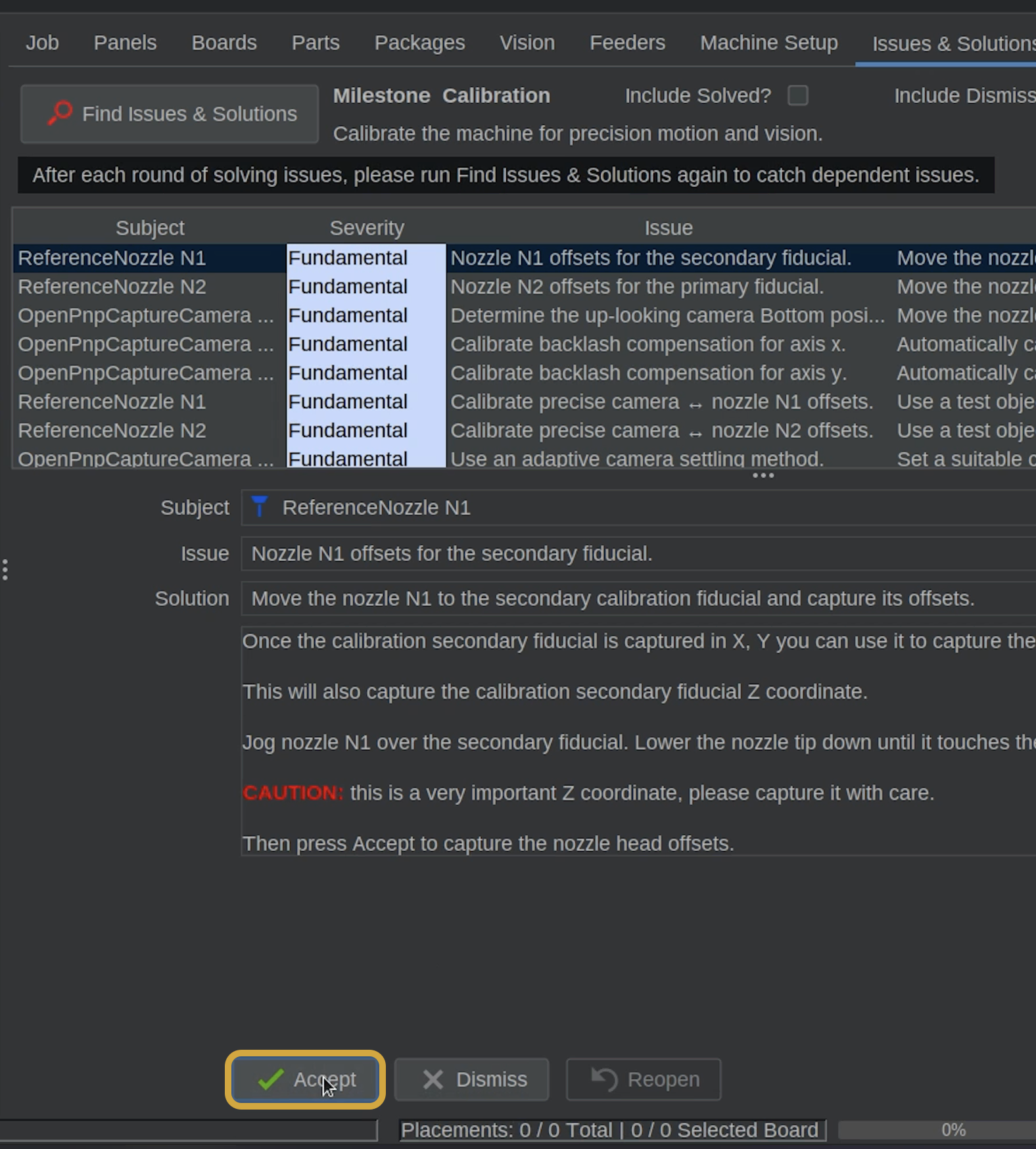

- Click Accept to save the nozzle's calibrated position.
What Does This Calibration Do?
This records the position of nozzle N1 relative to the secondary fiducial, providing an additional reference for calibration.
Step 4 of 5
Step 4: Refresh Issues & Solutions

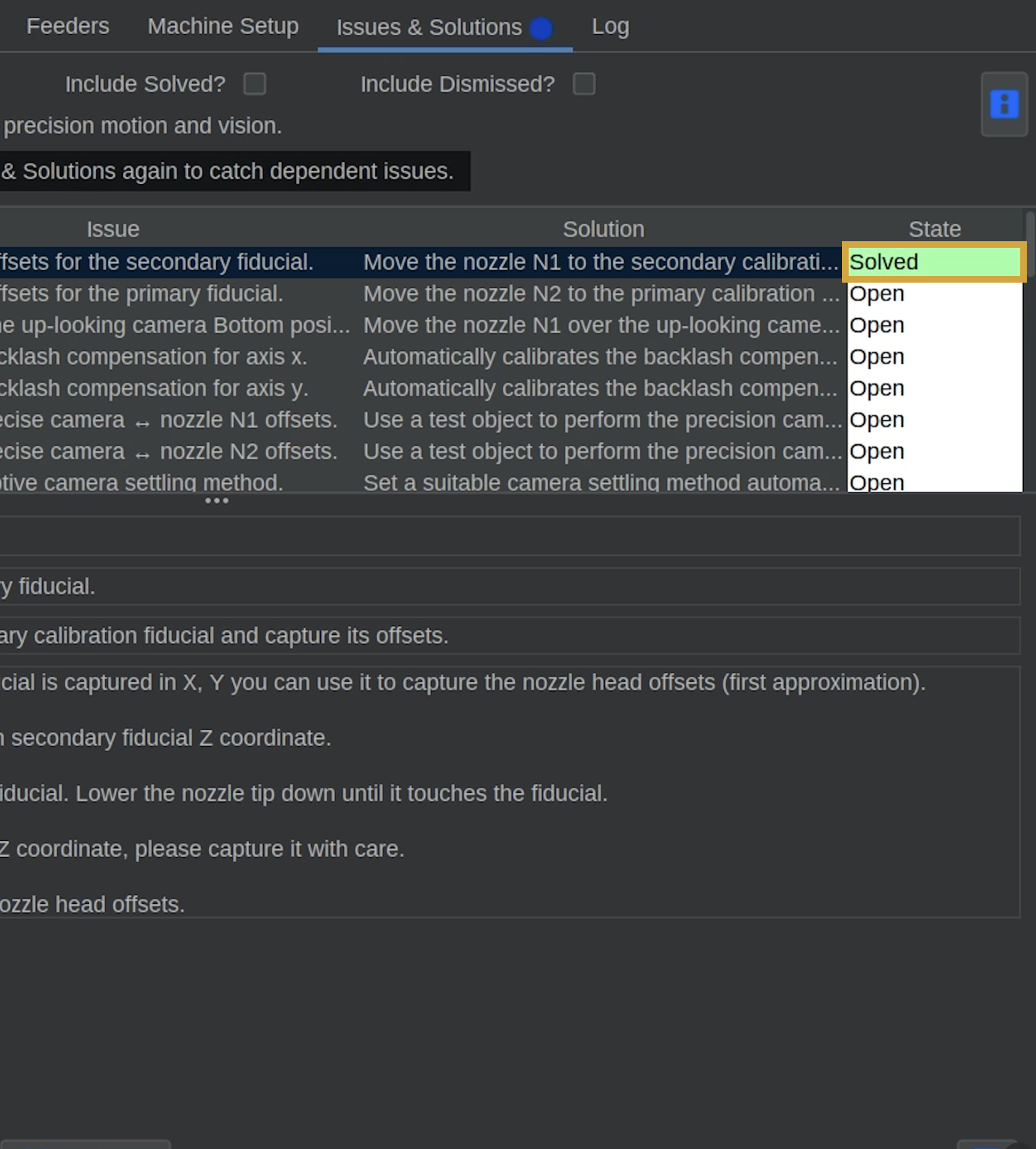

- Confirm the

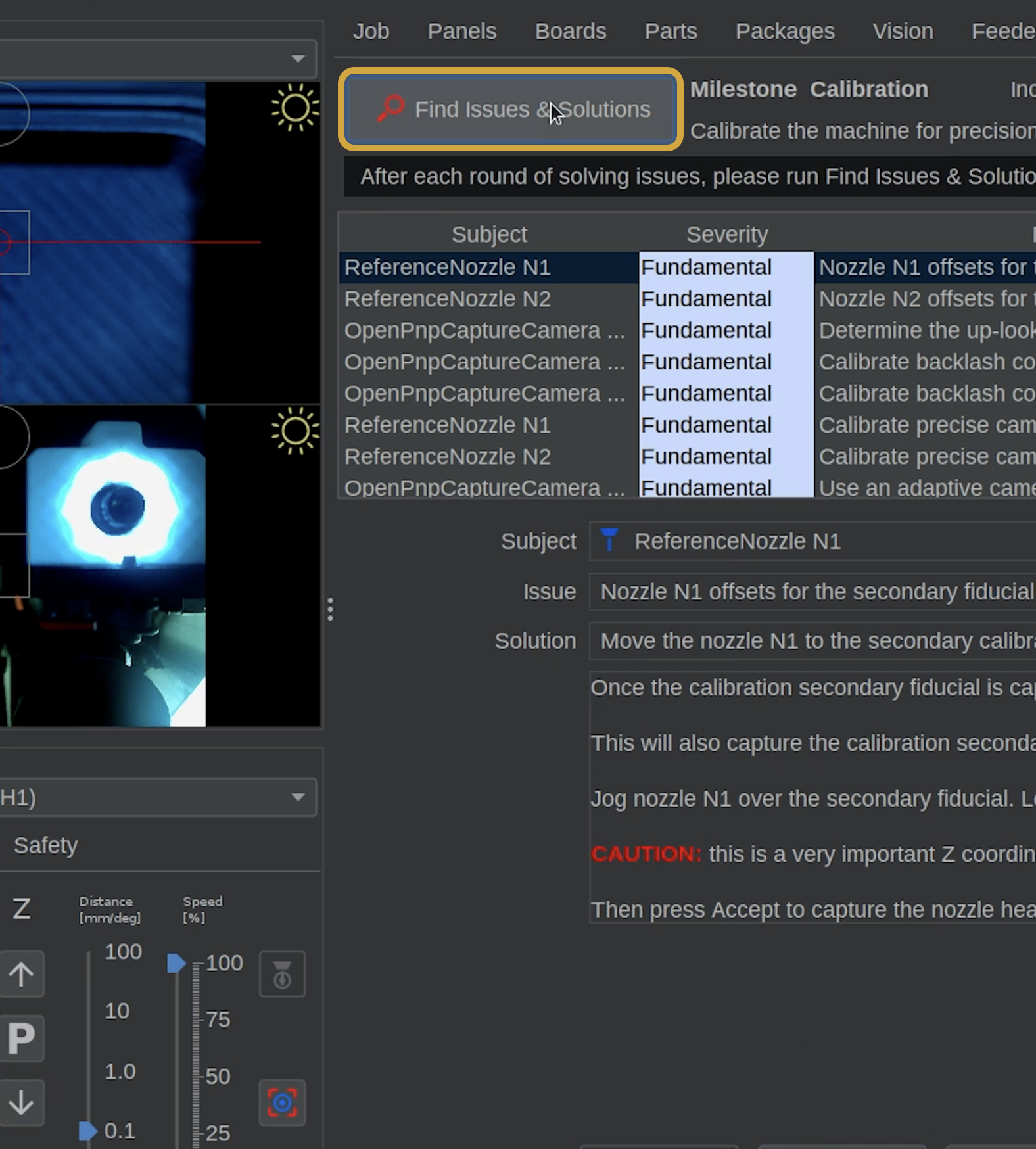

Nozzle N1 offsets for the secondary fiducialcalibration task is marked Solved. - Click Find Issues & Solutions to refresh the task list.
Step 5 of 5
Next Steps
Nozzle N1 Secondary Fiducial Calibration Complete
Nozzle N1 has now been aligned with both the primary and secondary fiducials.
Next, we'll calibrate Nozzle N2, which has the N045 nozzle tip installed, using the primary fiducial.
