PCB Fiducials Pipeline (Video Guide)

Just like the homing fiducial, fiducial markers are used to precisely identify the location of your PCB. The tuning process is identical but takes place in a different section of the OpenPnP UI.

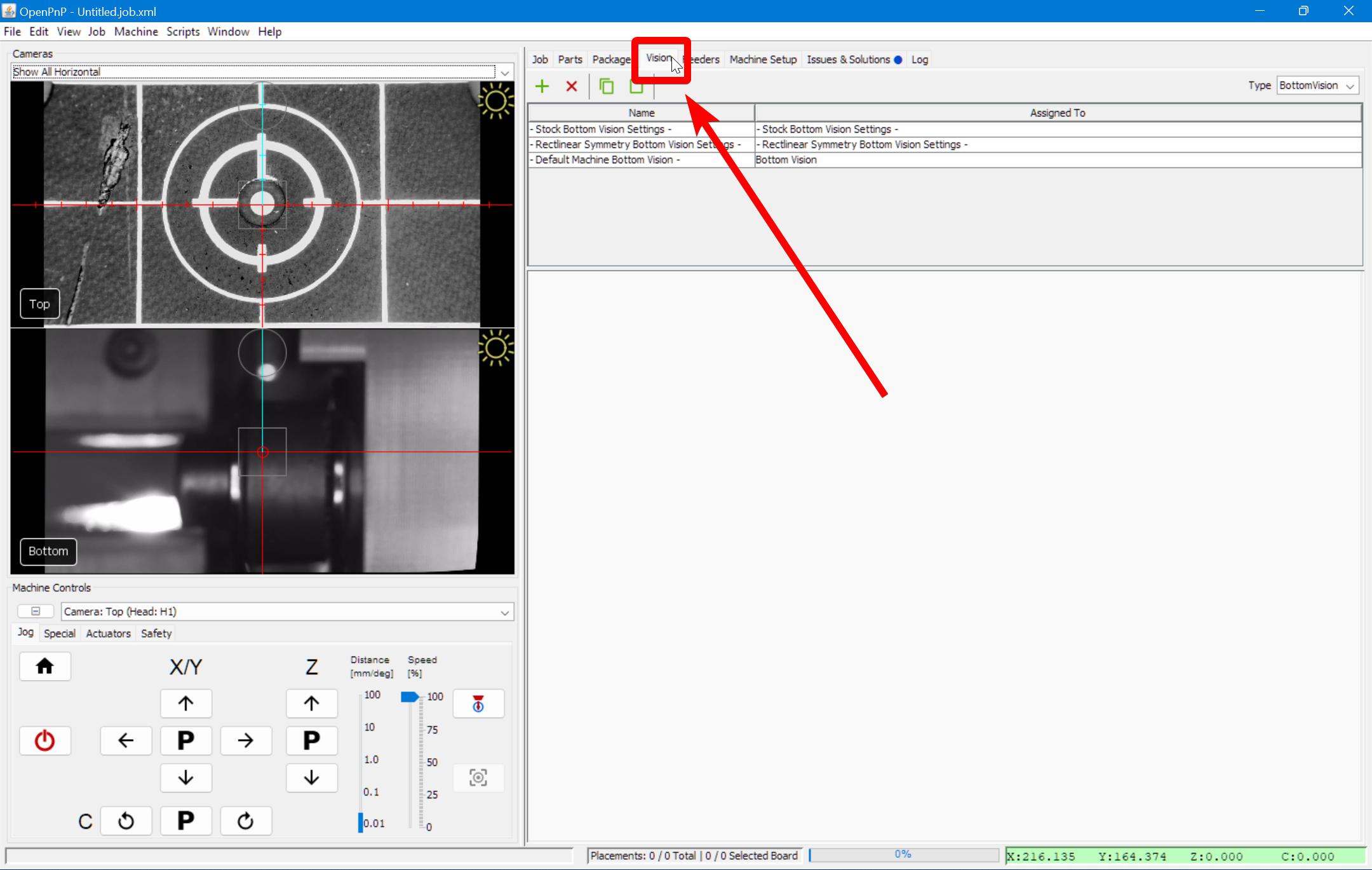

  1. Go to the Vision tab.

    Switch to the vision tab

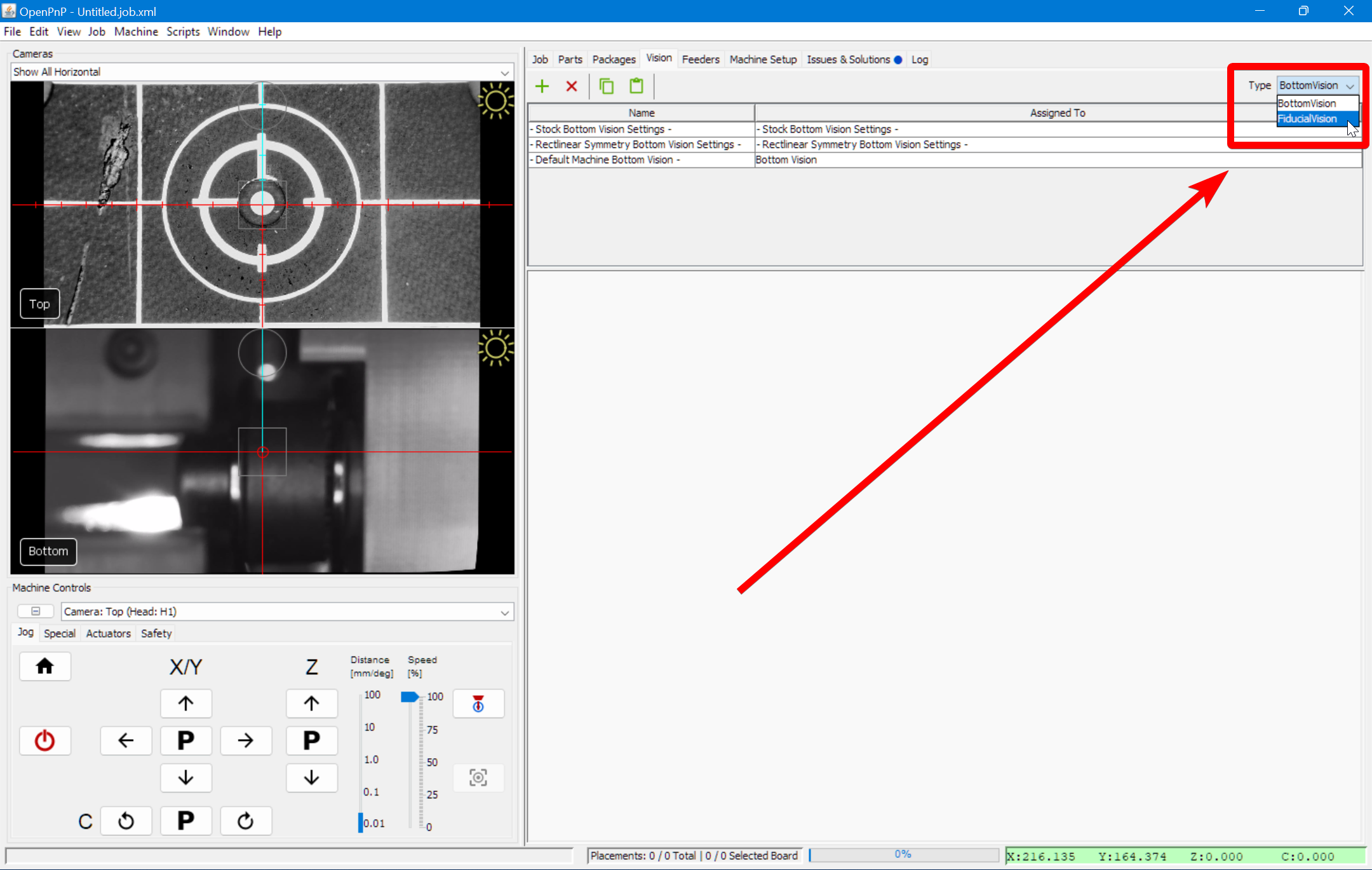

  2. Select FiducialVision from the type dropdown.

    Select fiducial vision

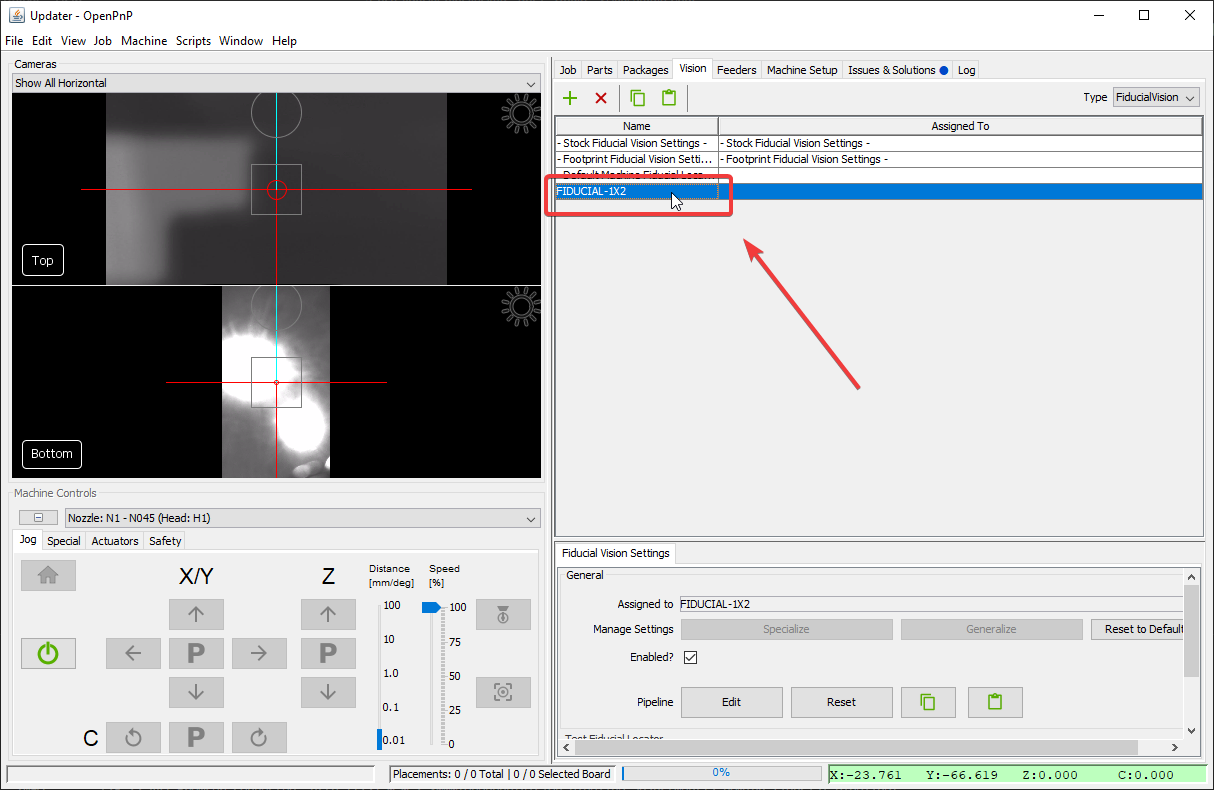

  3. Choose FIDUCIAL-1X2 from the pipeline list (or the pipeline assigned to your board’s fiducial).

    Select the FIDUCIAL-1X2 pipeline

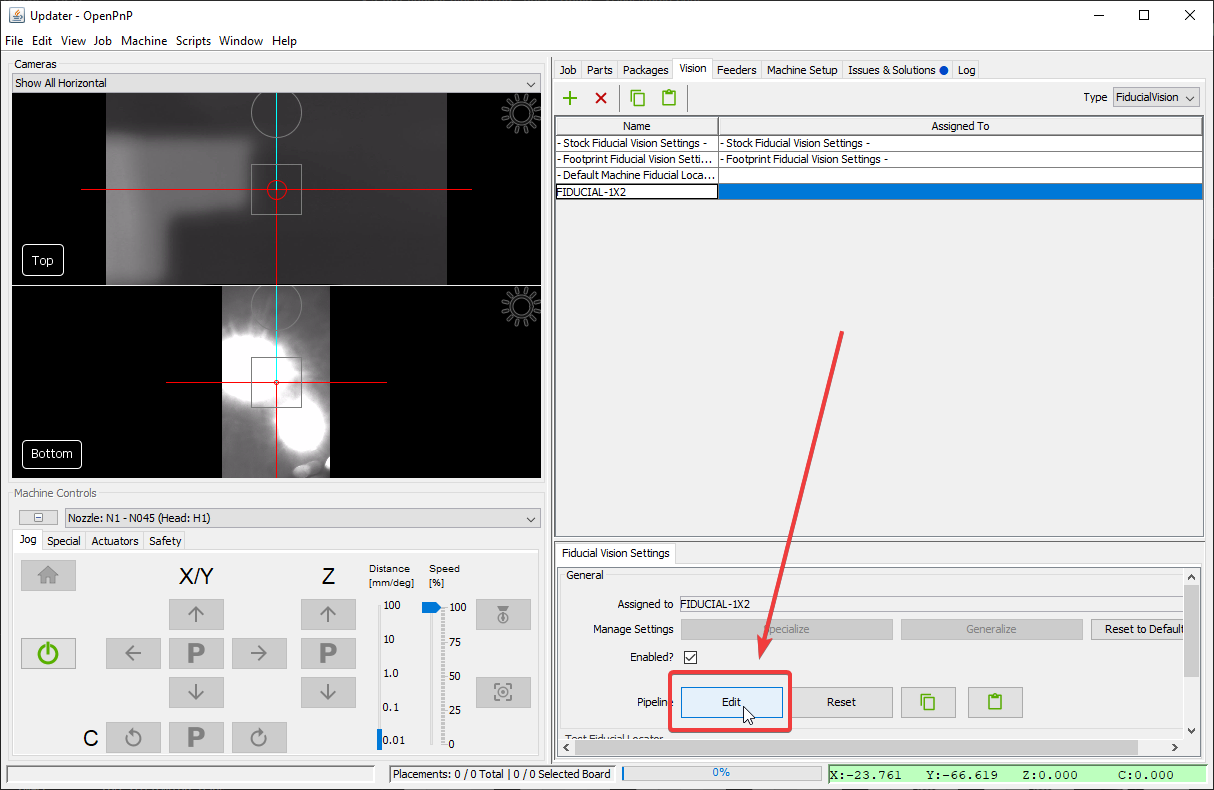

  4. Click Edit to open the Pipeline Editor.

    Edit the pipeline

  5. Follow the same procedure outlined in the Homing Fiducial Pipeline section.
