LumenPnP V4.1 Preflight Checklist – Before You Begin
Version Check
Preflight
Calibration
Validation
These docs require your machine to have a secondary fiducial. If you don't have one, or are unsure if you have one or not, please see options below
Confirm Your Staging Plate Revision
LumenPnP V4.1 includes a staging plate revision that adds a secondary calibration fiducial. This guide assumes that fiducial is present.
Confirming this now ensures calibration behaves as expected and you don't waste any time.

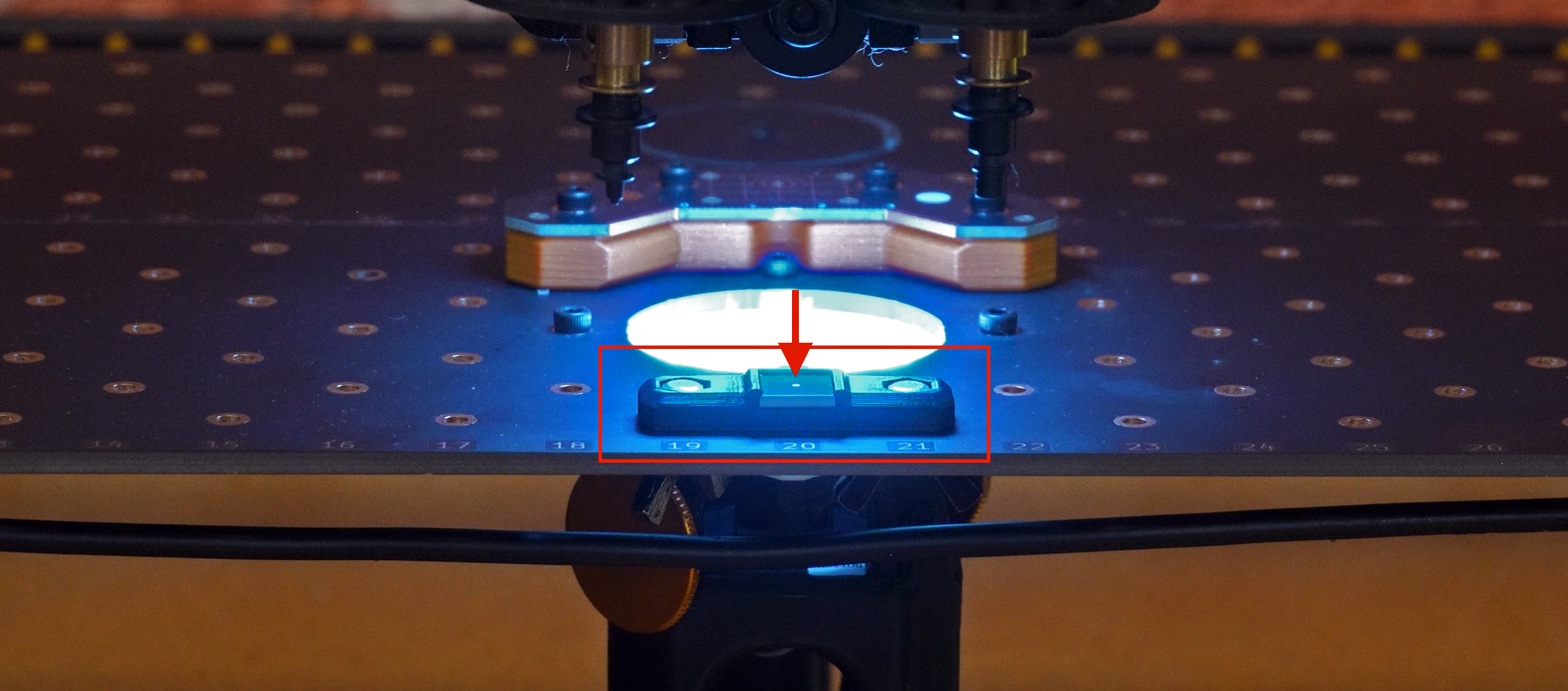

Locate the Secondary Fiducial
- The secondary fiducial is located near the closer side to the up facing bottom camera on the staging plate.
- It sits opposite of the primary fiducial found on the datum board.
- It is a small circular fiducial on a square PCB that is held in a small mounting bracket.
If You See the Secondary Fiducial
You are in the correct guide. Continue to Preflight:
If You Do Not See the Secondary Fiducial
You are likely using LumenPnP V4.0. You have two options:
Option 1 – Continue with V4.0 Documentation
If you prefer to keep your current configuration, you can continue using the V4.0 guide.
If you only have one fiducial, go to:
These docs are made for your version.
Option 2 – Install the Secondary Fiducial Upgrade (Recommended)
Upgrading your LumenPnP V4.0 allows you to utilize the latest OpenPnP improvements, including better calibration.
- Secondary fiducial upgrade:
- Costs less than $10.00
- It requires no machine disassembly
- Installs in minutes
- Enables the improved calibration used in this guide
- View Secondary Fiducial Upgrade →
