Camera Settling

Issue

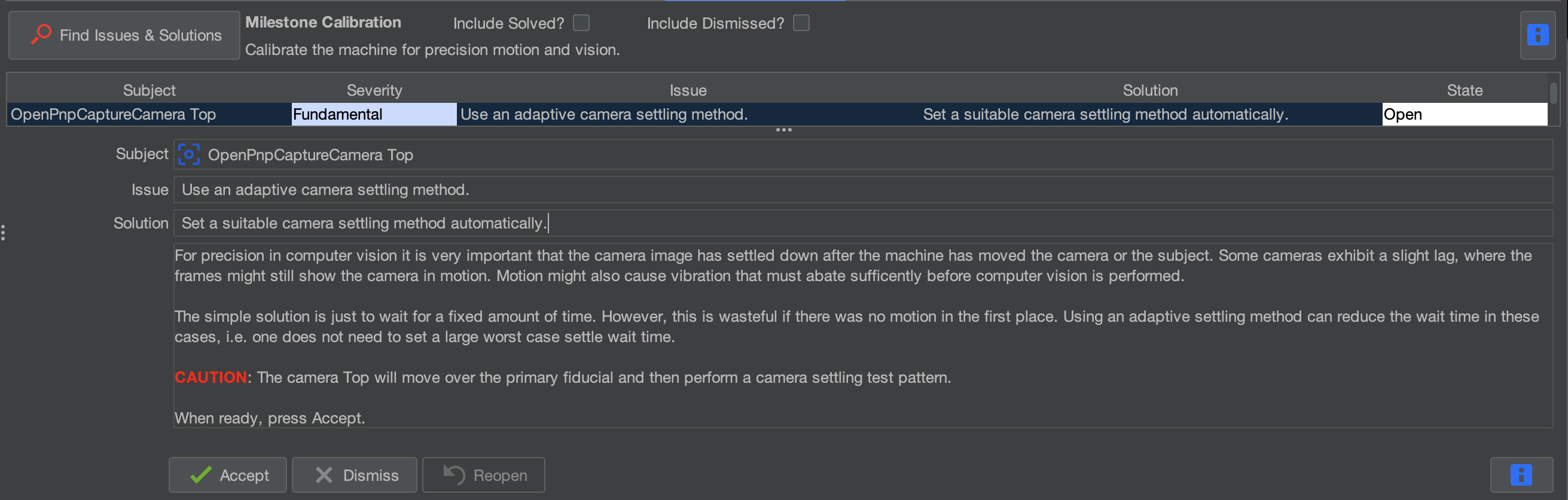

Use an adaptive camera settling method. (Top Camera)

Solution

Set a suitable camera settling method automatically.

What This Step Does

When the machine moves, small vibrations can cause the camera image to shift slightly before stabilizing.

Adaptive settling allows OpenPnP to automatically determine when the camera image has stabilized before capturing an image.

This improves detection accuracy and helps prevent blurry or inconsistent vision results.

Click accept to apply the recommended configuration.

OpenPnP will enable adaptive camera settling for the top camera.

No manual adjustments are required.

Once the process finishes and the issue is marked as Solved, click:

Next Step

With the Top camera Settling calculated, we'll move on to calibrating the adaptive camera settling method for the bottom camera.
