Validation Calibration Introduction
Validate Using the FTP Test Board First
Before assembling your own design, we will run a validation calibration test using our supplied FTP test board, components, and placement files.
Think of It Like a Printer Test Page. Before printing an important document, you run a test page. The FTP test board serves the same purpose.
Why Not Use Your Own Board First?
Your personal design introduces additional variables:
- Custom board origin
- Rotation differences
- Position file formatting
- Layer alignment
- Part library definitions
If something appears incorrect, it becomes unclear whether the issue is:
- Machine calibration
- File formatting
- CAD export settings
- Part definitions
What the FTP Test Board Does

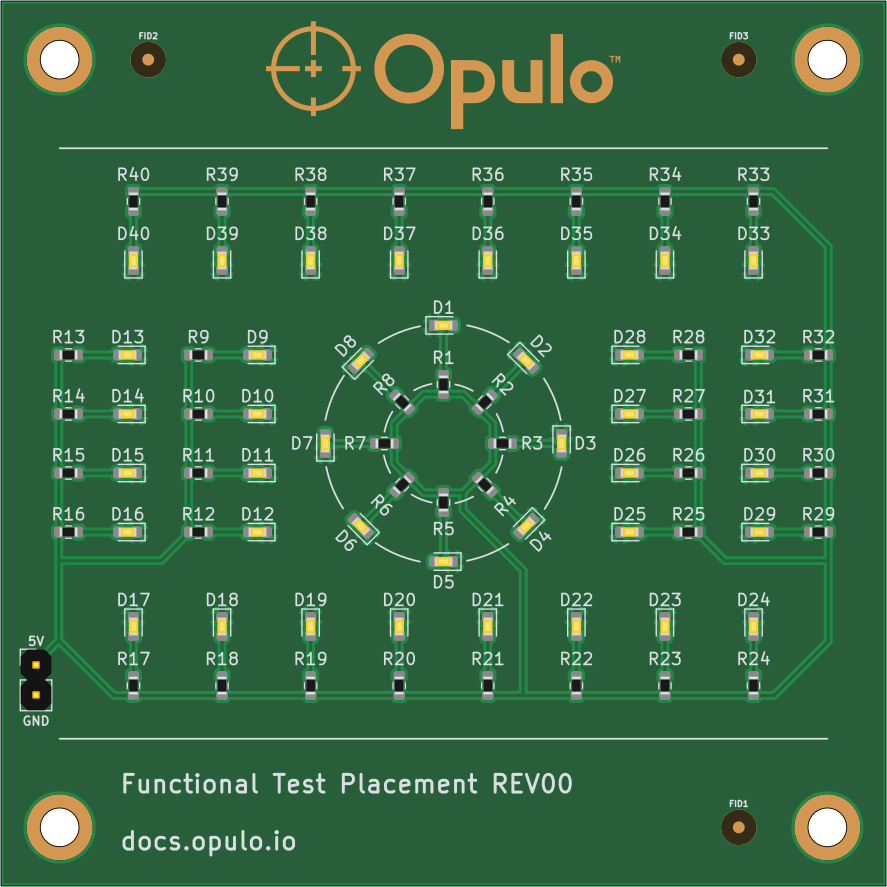

The FTP test board is a known-good reference.
We provide:
- The physical PCB
- The board file
- The position file
- components
This allows us to isolate machine behavior from design variables.
If the test board places correctly, you know:
- Your calibration is correct
- Vision alignment is working
- Offsets are accurate
- Backlash compensation is functioning
Validation Success
After successfully validating the FTP test job:
- Components align cleanly with the proper pads
- Parts are centered and rotated correctly
- Placement is repeatable
If anything looks off during this stage, we want to address it now while variables are controlled.
After Validation
Once the FTP test board is successful, you are ready to:
- Import your own board
- Load your own position file
- Begin assembling your designs
The benefit of taking the time to do this is that you are no longer guessing, and are starting from a verified, calibrated point.
